Description
………..
Stationary scissor goods lift platforms are widely used machines for many fields,the most popular using are in warehouse,basement, first floor,etc, which for carrying the cargos,cars and so on to the high floors.
It is design and produce as clients’ requirements, as long as telling us the requirements of capacity, platform size, lifting height, we can design, supply drawing and give offer.
………….
Model |
SJG5-4 |
Capacity |
5000kg |
Table size |
2000*3000m |
Table material |
5mm riffled plate and U steel fastened |
Lifting height |
4000mm |
Closed height |
900mm |
Weight |
2800kg |
Motor |
380V/60HZ/5.5kw |
Main materials |
Rectangular tube:250*100*8mm; |
Cylinder |
2pcs, dia. 125mm |
Handrails |
4pcs, 900mm; |
Spear parts |
Seal ring and oil pipes. |
………….
Sketch of the lift table:
………….

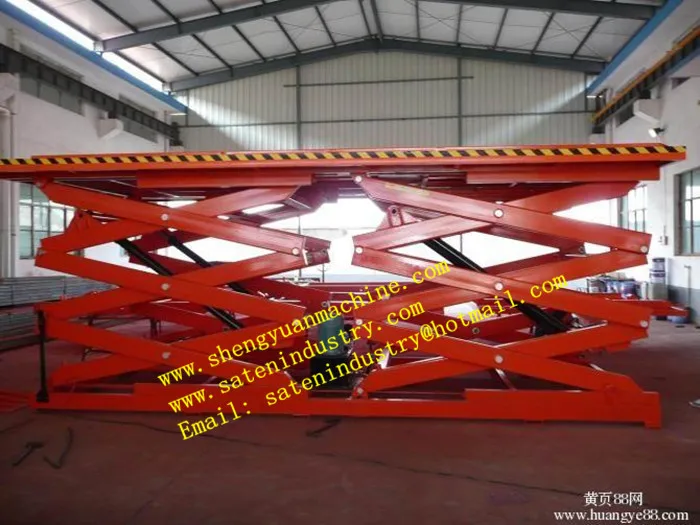

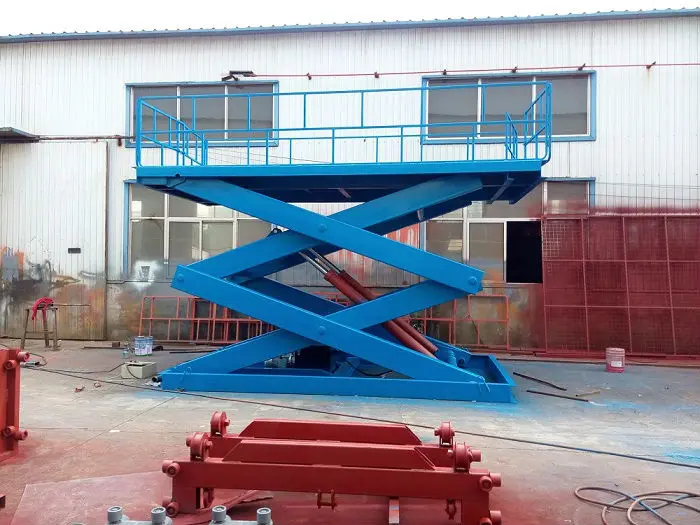

Some models which designed before for old clients:
…………
…………………
