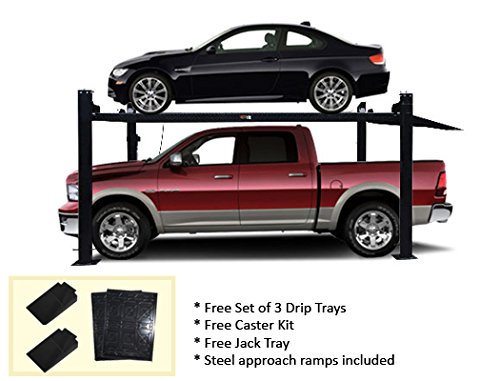

8,000 lb. Extra Tall Car Storage/Parking and Service Lift. Service lift with Extended length and extra height 8,000 lb. capacity and large 3″ cylinder, one-piece diamond-plate runways and scratch-resistant powder coat paint. The clearance between the column posts are about 6 inches wider than such a lot hobbyist lifts. Jack Tray – Comes as a normal option (see image 1) Set of 3 Drip Trays – One-Step Caster Kit – Easy to put in without a tools-simply pin them on, lower lift, casters routinely lift the columns; allows mobility without or with a vehicle; turn lift sideways to park two vehicles underneath. (see image2).
Specifications – Capacity: 8,000 lbs., Overall Length w/Ramp: 222-1/2″, Overall Width (Base to Base): 109-1/2″, Overall Height: 96″, Lifting Height: 82-1/4″, Width Between Post: 100-5/16″, Length of Runways: 180-1/2″, Width of Runways: 18-5/8″, Lifting speed: 100 sec, Max. Clearance under Track: 78″, Cable Diameter: 3/8″, Base Plate Size: 10″ x 12″, Lock Position: 12, Power: 110V – 15 Amp – 1PH, Ship Weight: 1,785 lbs.

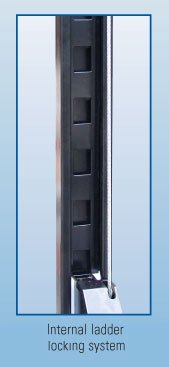

Carriages completely enclosed for safety. Redundant ladder lock safety system with “auto engage” locking bar within the event of cable failure. 10 lock positions.
Aircraft quality cables rated at 14,500 lbs. Easy operation: Lock release deal with positioned near power unit.
18″ wide runways formed with one-piece 3/16″ non-skid diamond plate. Extra-large slider blocks for added stability.
Large 3″ diameter. Many options to be had!
