Description

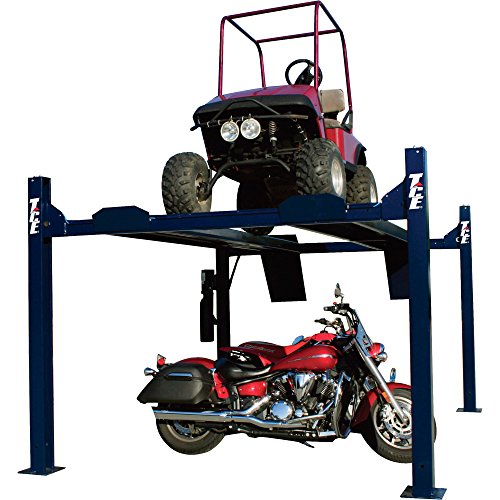

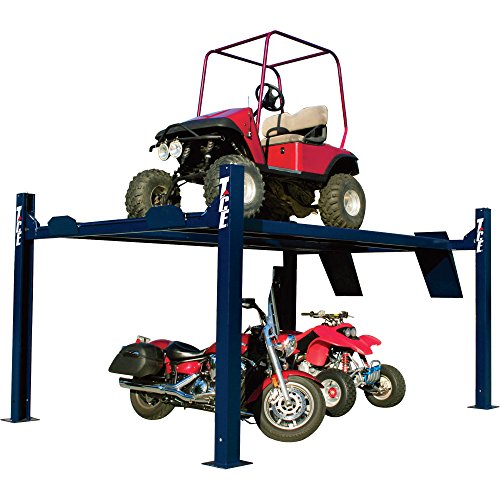

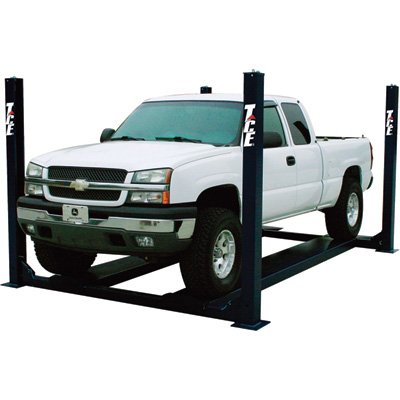

This TCE 4-post parking/hobby lift is designed for spaces with minimal to be had space. It allows you to easily save space by storing motorcycles, ATVs, jet-skis, small boats or other items on a raised lift. The reliable electric/hydraulic system raises a load as much as 74.1in.H in handiest 60 seconds. Lift has 13 locking positions spaced 4in. apart. 166in.L x 18.5in.W x 5in.H runways. Operation requires an air compressor (now not included). Meets and conforms to all standards for ANSI/U.L. 201, CAN/CSA C22.2 NO. 68 and CE Ref. no. EN1493-2010 requirements for garage equipment. Lift Capacity (lbs.): 7,000, Runway Dimensions L x W (in.): 166 x 18 1/2, Overall Length (in.): 200, Runway Dimensions L x W x H (in.): 166 x 18 1/2 x 5, Max. Upward thrust (in.): 74.1, Motor Phase(s): 1, Locking Positions (qty.): 13, Bearings Included: No, Volts: 220, Lock Spacing (in.): 4, Overall Height (in.): 92, Overall Width (in.): 107 5/8, Time of Full Upward thrust (seconds): 60, HP: 3.5
7,000-lb. lifting capacity
Narrow design maximizes space for parking and private garage requirements

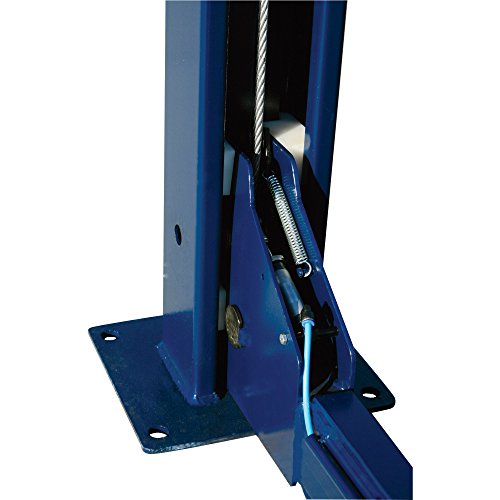

Commercial grade synchronizing safety latch system offers a singular 2-position locking mechanism
Air locking system

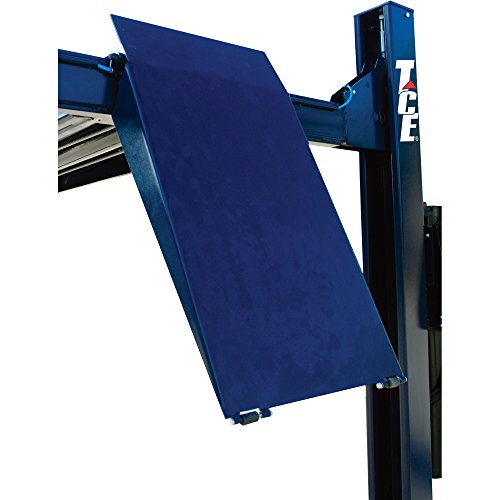

Detachable, tilting steel method ramps are included
