Vestil EHLT-4048-4-43 Electric Hydraulic Scissor Lift Table, 4,000 lb. Capacity, 48″ x 40″ Platform, 7″ to 43″ Height Range


Hydraulic scissor lift table with electric motor for lifting and lowering heavy materials
Blue powder-coated steel frame for resistance to wear and corrosion
24V hand control on coiled 8′ cord for operating table at a distance

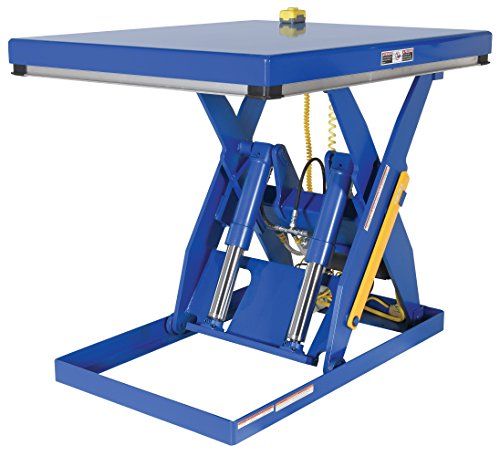

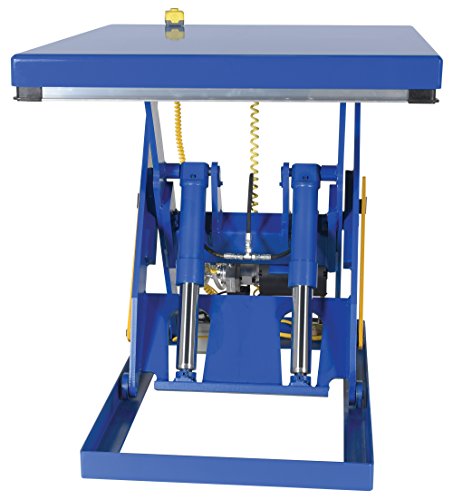

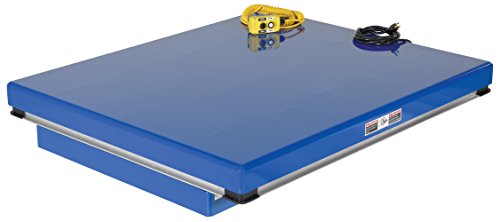

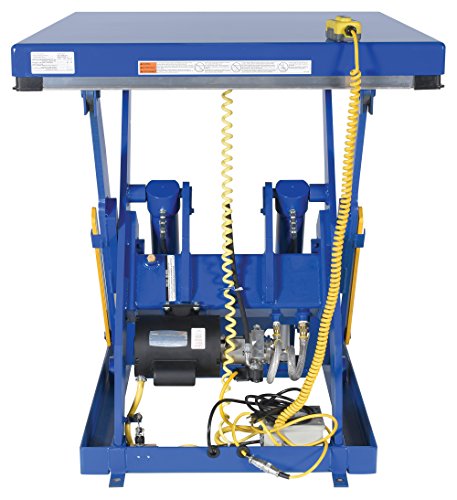

The Vestil EHLT-4048-Four-43 electrical hydraulic scissor lift desk has a metal body, a motor, a hydraulic platform, and a hand regulate and is appropriate in a warehouse or manufacturing facility for lifting and decreasing heavy supplies. Steel resists put on and corrosion. The blue powder-coated end resists scratches, chipping, fading, and different put on. The 2 hp, 460V, three-phase electrical motor can increase and decrease the platform to an optimum top for loading or unloading. The motor is enclosed for defense. The single scissors mechanism extends to increase the platform to as excessive as 43″. A removable 24V hand regulate on a coiled eight’ wire allows the desk to be operated at a distance. An electrical toe guard protects pinch factors when decreasing the platform for security. An higher shuttle restrict change stops the platform at its most top. A velocity fuse within the hydraulic cylinder helps forestall it from failing. The desk’s platform measures 40 x 48 inches (W x L). (W is width, the horizontal distance from left to proper; L is size, the horizontal distance from entrance to again.) The desk has a load capability of Four,000 lb., a service vary of seven to 43 inches, and a hydraulic element ranking of three,000 psi and weighs 878 lb.

Lift tables usually comprise a body, a scissors mechanism, and a hydraulic or motorized platform that could be raised or lowered to an optimum, ergonomic top to load or unload heavy supplies, or to improve an individual. Some elevate tables have wheels and a care for, permitting them to be used as carts for transporting supplies. The platform can also be managed with a foot pump or, when it comes to electric-powered elevate tables, push buttons. Lift tables could be utilized in warehouses and different industrial environments.

Vestil manufactures supplies dealing with gear, together with hoists and trolleys, jib and gantry cranes, loading dock gear, and storage options. The firm, based in 1968, is headquartered in Angola, IN.

Hydraulic scissor lift desk with electrical motor for lifting and decreasing heavy supplies
Blue powder-coated metal body for resistance to put on and corrosion
24V hand regulate on coiled eight’ wire for working desk at a distance
Four,000 lb. load capability with 40″ x 48″ platform
Service vary of seven” to 43″
